DESCRIPTION

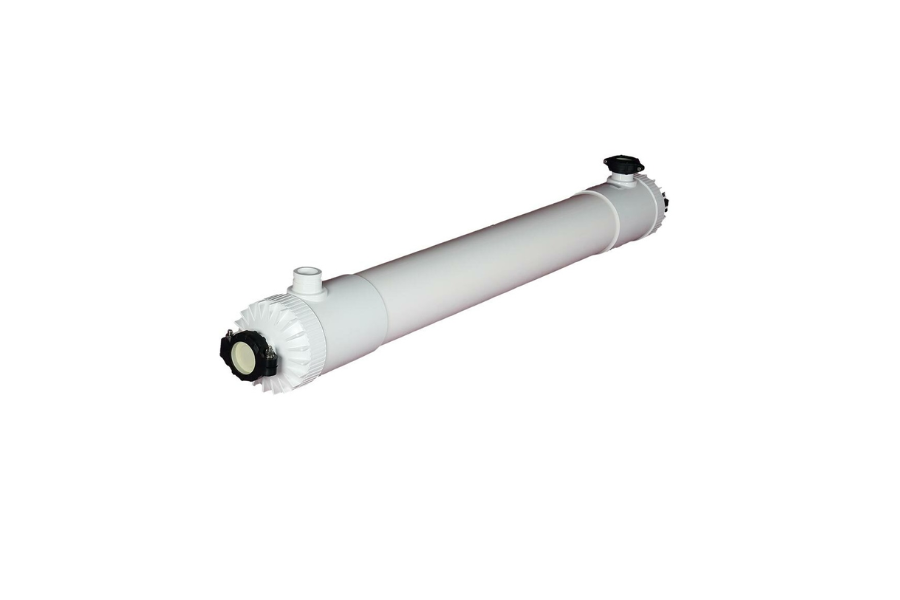

Toray's membrane construction is highly resistant to chlorine and strong acids, which allows for better cleaning and optimization of filtration flux rates after cleaning. The hollow fiber modules effectively remove suspended solids, viruses, and bacteria and are certified for drinking water applications.
Applications:-
Drinking water
Industrial process water
Pretreatment for seawater RO desalination
Secondary and Tertiary wastewater
FEATURES:-
Simple operating control
Low energy consumption
High efficiency in organic substance removal
Specifications:-
Membrane Material - PVDF (Polyvinylidene fluoride)
Nominal Pore Size - 0.01µm
Outer Membrane Surface Area - 72 (775) m² (ft²)
Feedwater / Filtrate Flow - 12 (53) m³/h (GPM)
Maximum Backwash Flow - 13.5 (59) m³/h (GPM)
Maximum Air Flow - 9.0 (5.3) Nm³/h (scfm)
Maximum Inlet Pressure - 300 (43.5) kPa (psi)
Maximum Backwash Pressure - 300 (43.5) kPa (psi)
Normal Operating Transmembrane Pressure - 0–200 (0–29) kPa (psi)
Operating Temperature Range - 0–40 (32–104) °C (°F)
PH Range During Filtration 1–10
PH During Cleaning 0–12
Dimension and Weight:-
Diameter - 216 (8.5) mm (in)
Length - 2,160 (7.087) mm (ft)
Weight Full of Water - 92 (203) kg (lbs)
After Draining - 49 (108) kg (lbs)
Material Specifications:-
Casing - UPVC
Cap - UPVC
Potting - Epoxy resin
O-ring - EPDM
