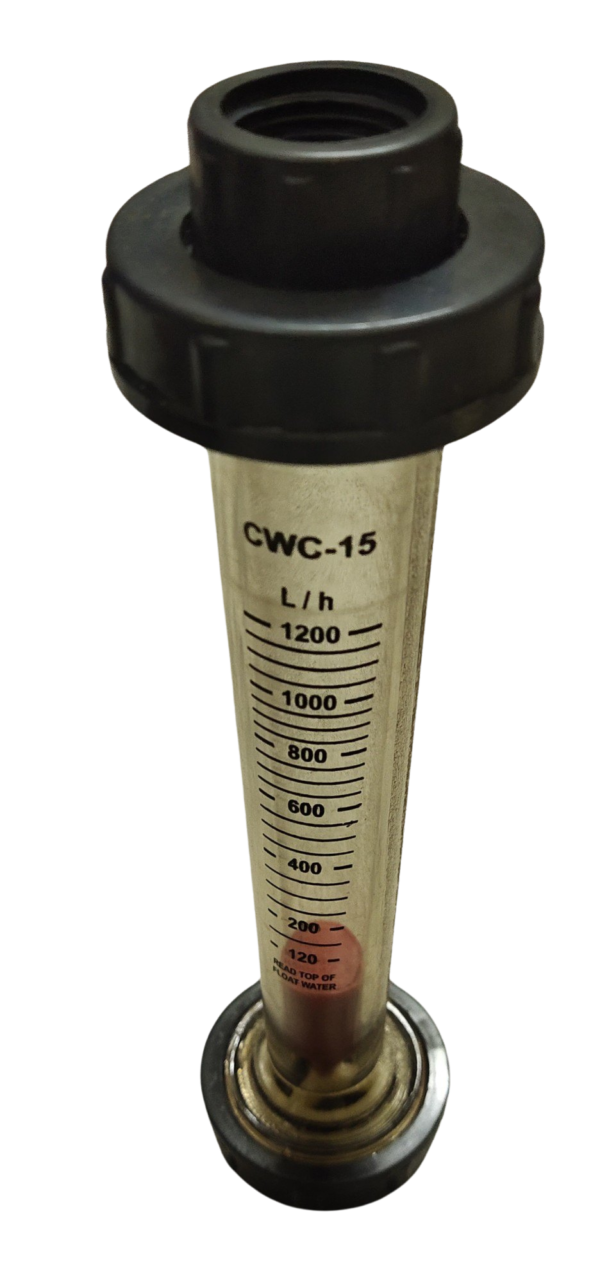

200 LPH Rotameter - True Water

Since the rotameters tube is mounted vertically so when there's no flow, the float will rest at the bottom but once the water starts flowing in the upward direction the float will begin to rise. In ideal conditions, the height that the float rises to is directly proportional to the water flow rate and the annular area between the float and the tube wall.  The float will reach a fixed position when the upward force exerted due to water flow balances the weight of the float and the flow rate can be found by reading the scale against the fixed float position.

Rotameter provides many advantages over other types of flow meters as it measures the flow rate on the basis of fluid velocity and buoyancy effect together with gravitational force and does not require any external power or energy.

Application areas of 200 LPH Rota Meter:-

A rotameter is a simple device and not very high in cost therefore it can be widely used for numerous purposes. It gives precise readings and is long lasting so used in the water treatment industry for flow measurement in the Industrial RO and similar system applications.

The acrylic body type model can be used for temperatures up to 50 Deg Celsius and glass tubes based model can be used for certain types of fluids like water up to 90°C (194°F) otherwise along with its high pH the fluid will soften the glass material or certain other material like caustic soda will dissolve the glass or acid like hydrofluoric  ( HF ) will etch the glass.
